Description
Product:

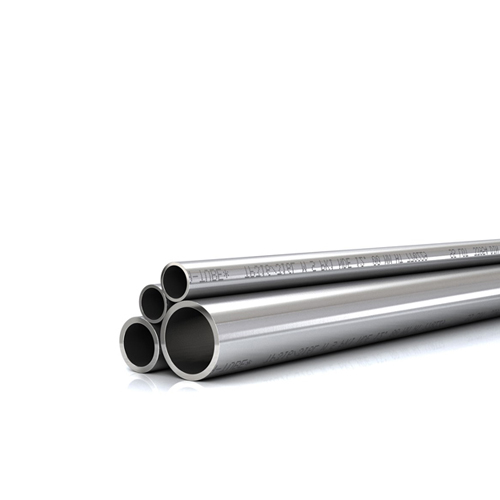

Stainless Steel Sanitary Tubing
Manufacturing:
In strict accordance with A270 and 3A specification
Material:
304L & 316L available
Size Rang:
1/2”to 6” O.D. tube size
Surface Finish:
Surface finish is 20 µ-in Ra (0.5 µm) ID maximum, 30 µ-in Ra (0.8 µm) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilometer reading at 90 degrees to major polishing pattern
Packing:
Tubing is packaged using protective poly sleeving along with air tight plastic end caps. The tubing is then placed in wooden boxes for maximum protection during shipment
Quality Guarantee：
- Hydrogen bright annealed in line to 1900°F
- Tubing is tested in strict accordance with the requirements of ASTM A269 and A270 by performing the full battery of ASTM bend and deformation tests required by ASME SA249
- Tubing is 100% bore-scoped
