ISO Flanges and Fittings

Description

Features:

● Flanges are designed according to ISO specification and can be changed upon request.

● Flange size are from ISO63 to ISO160. Special sizes upon request.

● Vacuum Range: ≥10-8Torr.

● Standard materials are 304 and 316L stainless steel.

● Tube sizes are from 2-1/2″ to 6″.

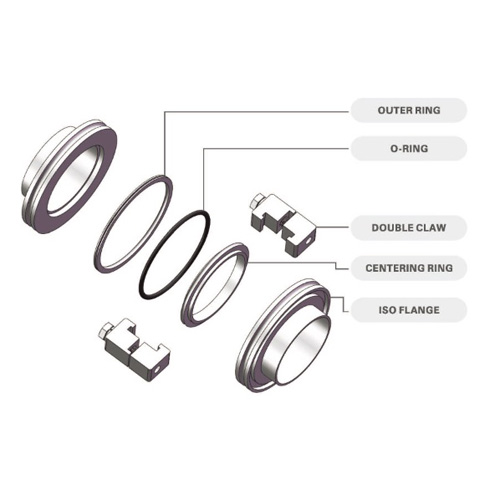

● The ISO flange system consists of two sexless flanges, an O-ring supported by a center ring and a range of clamps.

● The system can afford up to 400°F(200°C). Howerver, sustained baking above 302°F(150°C) may result in deterioration of the O-ring.

● ISO products are supplied with a machining finish. Other finishes are also available.

● Flanges and seals are reusable.

● Quick assembly or disassembly.

● ISO flanges are each tested before shipping.

● Seal Tempreature Range:

Fluorocarbon FKM(Viton): -5°C~204°C(23°F~399°F)

Silicon: -50°C~180°C(-58°F~356°F)

Buna-N(NBR): -25°C~121°C(-13°F~250°F)

Applications:

● High Vacuum

● Roughing Line

● Vacuum systems, whitch require cleaning and modified frequently

● Experimental system in research laboratories
