Description

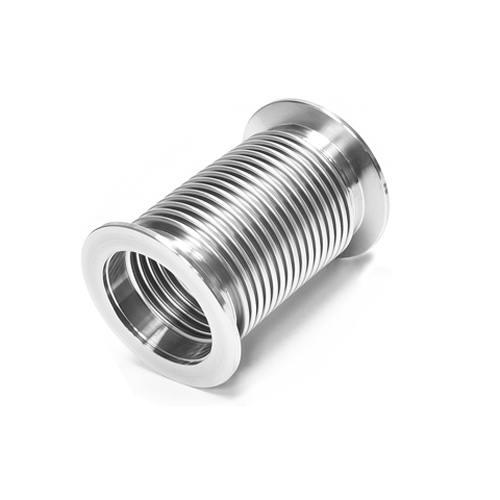

●Formed Bellows
Features:
1. Bellows are designed according to EJMA standard.
2. Minimum wall thickness is 0.12mm and can be changed upon request.
3.Standard materials are 304 and 316L stainless steel.
4. High precision.
5. Automatic welding to ensurethe high quality and stable supplies.
6. No oxide passivation films covered during the welding process.
7. Forged flanges and fittings for better quality.
8. Customized length for maximum 3meters.
9. Mating CF, ISO, KF, JIS and pipe end flanges available.
10. Special sizes and length available upon request.
11. Bellows are each tested before shipping.
12. Working temperature: ≤ 250°C.
13. Helium leadk rate: ≤1×10-9PaM3/Sec.
14. Operational Life: ≥1×104 repetitiongs. However, theseverity of the flexing, temperature, corrosive conditiongs, pressure and vibration may affect the usage.

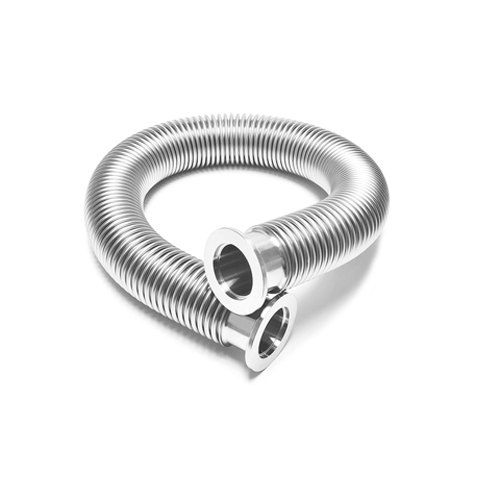

●Flexible Hoses
Features:
1. Flexible tube can be designed according to different specificationg.
2. Soft and hard series for option.
3.Standard materials are 304 and 316L stainless steel.
4. Forged flanges and fittings for better quality.
5. No oxide passivation films covered during the welding process.
6. Automatic welding to ensurethe high quality and stable supplies.
7. Customized length for maximum 3meters.
8. Mating CF, ISO, KF, JIS and pipe end flanges available.
9. Special sizes and length available upon request.
10. Hoses are each tested before shipping.
11. Working temperature: ≤ 250°C.
12. Helium leadk rate: ≤1×10-9PaM3/Sec.
13. Operational Life: ≥1×104 repetitiongs. However, theseverity of the flexing, temperature, corrosive conditiongs, pressure and vibration may affect the usage.
