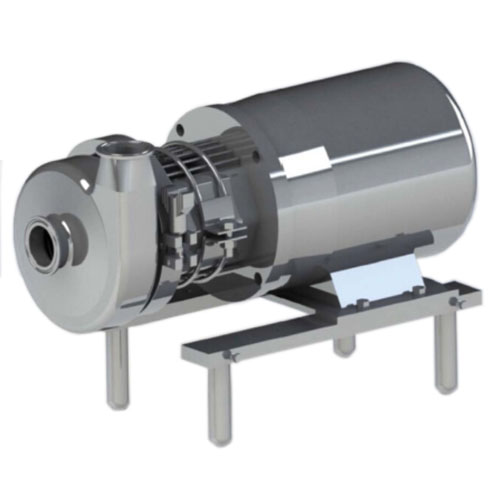

C-series Centrifugal Pump

C-Series Centrifugal Pump

  • Include C114, C214, C216, C218, C318, C328, C428 etc;
  • 3A approved;
  • The replacement parts are interchangeable with most major brands of C-series.

Description

Mechanical Specifications

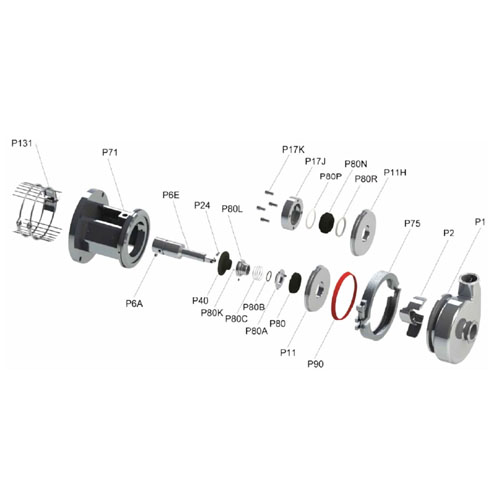

Standard Construction

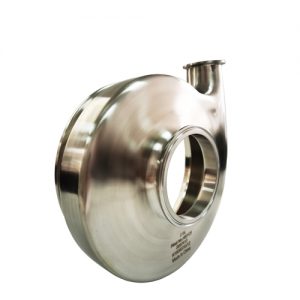

● Volute: 316L stainless steel by STEMPING

● Impeller: CF8M(316) stainless steel

● Backplate: 316L stainless steel

● Stub Shaft: 316L stainless steel

● Adapter: 304 stainless steel

● Optional Leg Kit: 304 stainless steel

● Seal Type: “D” and “DG” with clamped in seat

● Rotary Seal Material: carbon,silicone carbide rotating element available as option

● “DG” Seal Seat Material: silicone carbide, ceramic and tungsten carbide

● Elastomers: Buna, EPDM, Silicone and Viton

● Surface Finish: sanitary polish 32R

Performance Characteristics Motors
● Normal Capacity: up to 780 GPM

● Temperature: 32°F to 212°F, consult factory for other temperatures

● Normal speed: up to 3500 RPM – 60Hz



● Motor: Standard C-Face,1750 and 3450 RPM
